Parallel Type Twin Rod Cylinder , 180 Degree MHY2 Series Double Rod Air Cylinder Gear Type

Name: Parallel Type Twin Rod Cylinder 180 Degree MHY2 Series Double Rod Air Cylinder Gear Type
Brand: PRIUS,XINYI or OEM
Price: 1 USD

Wholesale Parallel Type Twin Rod Cylinder , 180 Degree MHY2 Series Double Rod Air Cylinder Gear Type from china suppliers

Brand Name : PRIUS,XINYI or OEM

Model Number : MHY2

Place of Origin : Ningbo,China

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T, L/C, Western Union,Paypal

Supply Ability : 20000pcs per month

Delivery Time : 10~15 working days

Packaging Details : bag+box+catons+pallet

Name : Gear Gripper

Working Medium : Air

Frequency : 60 C.P.M.

Temperature Range : -10-60℃

Magnet : without

Port Size : M5X0.8

Lubricate : NO

Action Type : Double acting

Contact Now

Parallel Type Twin Rod Cylinder , 180 Degree MHY2 Series Double Rod Air Cylinder Gear Type

SMC type Parallel pneumatic Gripper double acting single action Pneumatic air cylinder Bore size 6mm-40mm e.g. MHY2-16-F9BW with magnet and two fingers

Quick Detail:

* SMC equvalent Parallel air Gripper series MHY2

* Double action single action for option

* Various finger type selectable

* Cylinder body several type for your choice

* Built-in magnetic,suitable slot on 2 sides is designed for magnetic sensor fixing

* With high precision integral linear guide and high rigidity gripper

* Machined by advance CNC center, air gripper are with long life time and easy to mantian.

* With self-lubricating bearing,lubrication free

* Bore size6mm,10mm, 16mm,20mm,25mm,32mm,40mm

Specifiction

Model	MHY2-10D	MHY2-16D	MHY2-20D	MHY2-25D
Working Medium	Air
Motion Pattern	Double Action
Max. Operating Pressure	0.6MPa(6.1kfg/cm²)
Min. Operating Pressure	0.1MPa(1.0kfg/cm²)
Ambient & Medium Temp.	-10~+60℃
Highest Operating Frequency	60c.p.m.
Precision	±0.2mm
Retentivity N^.m (kgf/cm²)	0.16 (1.6)	0.54 (5.5)	1.10 (11.2)	2.28 (23.3)
Weight (kg)	70	150	320	560
Lubricate	No required
Port Size	M5×0.8

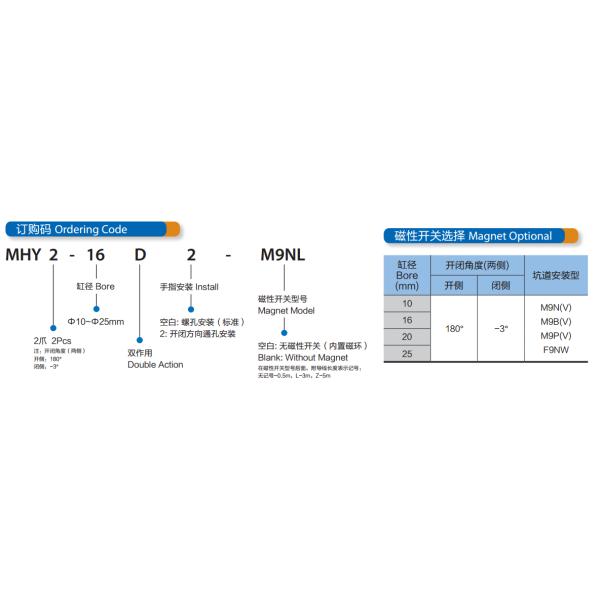

Oredering Code

Parallel Type Twin Rod Cylinder , 180 Degree MHY2 Series Double Rod Air Cylinder Gear Type

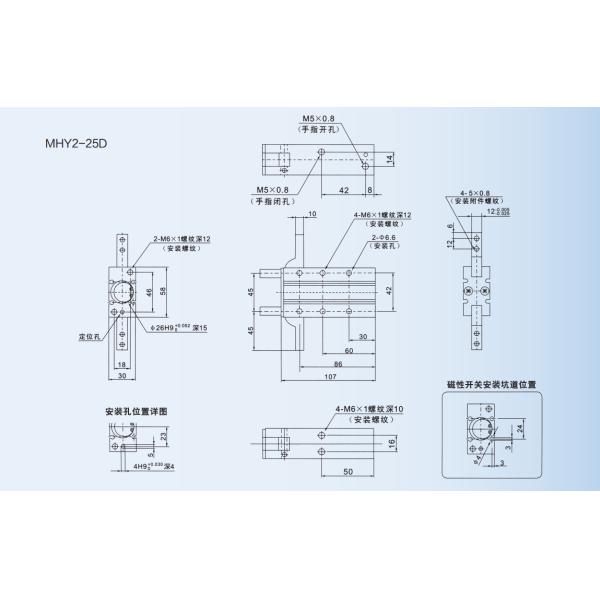

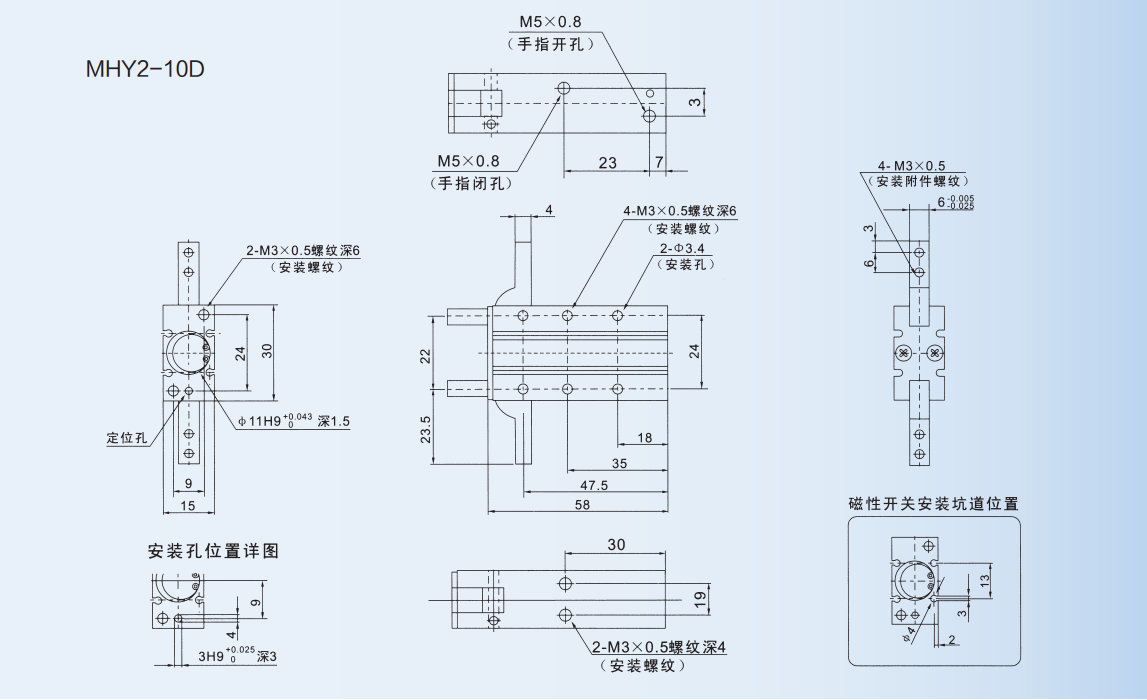

Overall Dimension
